Fliess ED ER80S-Ni1
Solid wire for welding of mild and low alloyed steels.
AWS A5.28: ER80S-Ni1
EN ISO 14341-A: G 46 6 M21 3Ni1
General description:

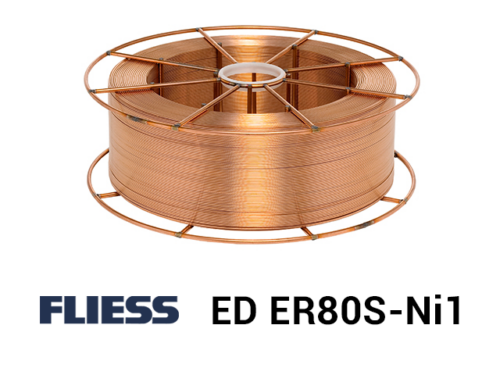

Fliess ED ER80S-Ni1 is a copper coated solid wire for MIG/MAG welding of fine grain structural steels with Argon/CO2 (M21) mixed shielding gas.
Typical usage is within offshore and Oil & Gas steelworks and pipe welding. The wire is suitable for welding with a wide range of welding currents with excellent appearance. It has low spatter performance, and excellent wire feeding capabilities. Suitable for both manual welding and for robotic/mechanised welding in all positions, including vertical downwards. Can be used for applications where service temperature is down to –60°C.
Typical chemical composition of welding wire:
| C | Si | Mn | P | S | Cr | Mo | Ni | Cu | V |
|---|---|---|---|---|---|---|---|---|---|
| 0,10 | 0,65 | 1,1 | 0,008 | 0,009 | 0,13 | 0,03 | 0,86 | 0,09 | 0,002 |
Packaging information:
0,8mm x 15kg spool -ArticleNo.: 802508
1,0mm x 15kg spool -ArticleNo.: 802510
1,2mm x 15kg spool -ArticleNo.: 802512
1,6mm x 15kg spool -ArticleNo.: 802516
0,8mm x 250kg drum -ArticleNo.: 802808
1,0mm x 250kg drum -ArticleNo.: 802810
1,2mm x 250kg drum -ArticleNo.: 802812
1,6mm x 250kg drum -ArticleNo.: 802816
Do you need help with ordering or want a price offer?
Click here to contact us.
Approvals:
VdTÜV, CE
Reference/date:
Fliess ED ER80S-Ni1, English, 15.04.2026.
