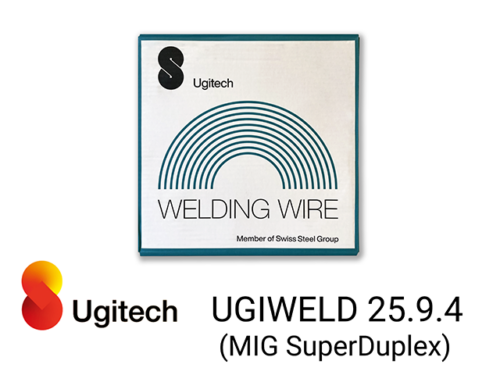

UGIWELD 25.9.4 (MIG SuperDuplex)

Ugiweld 25.9.4 is a solid wire designed for gas metal arc welding (GMAW/MIG) of super duplex stainless steels such as SAF 2507, Zeron 100, and equivalent grades. It is suitable for both manual and mechanized/robotic welding on pipes and plates. Argon/CO₂ mixed shielding gases are typically used during welding. For root backing gas, pure argon, nitrogen, or argon/nitrogen gas mix is recommended. The resulting weld metal microstructure is influenced by welding parameters, gas composition and cooling rate. Purity is a critical factor when welding high-alloyed materials. Keep weld zone free of any contaminations. Single-sided welding requires the use of an appropriate purge (backing) gas to protect the root side of the weld and to ensure optimum corrosion properties and surface quality of the root bead. The interpass temperature should not exceed 100 °C, and the heat input should be limited to a maximum of 1.5 kJ/mm to maintain the desired microstructure and mechanical properties.
